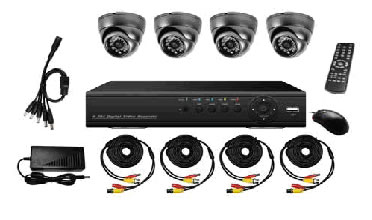

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΛΑΜΒΑΝΕΙ


 Καταγραφικό 4 καμερών Η.264 δικτυακό
 4 έγχρωμες κάμερες SONY με νυχτερινή λήψη 1/3.7 inch CMOS Sensor 520TVL (μαύρο - λευκό)
 Αντάπτορες για την σύνδεση και καλώδια καμερών
 Τροφοδοτικά καταγραφικού και καμερών
 Σκληρός δίσκος SATA HDD 500GB
 1 ποντίκι USB
 1 τηλεκοντρόλ

Πακέτο
KIT FOR DOME

Χαρακτηριστικά

Specifications
Model Name
Main stream
Extra
1920*1080@60P
EN-5004
Video 4CH D1 real time,NTSC:120FPS ;PAL:100FPS
Input 4×BNC,(1.0Vp-p,75Ω)
Standard
Output 1×BNC,(1.0Vp-p,75Ω),1×VGA,1×HDMI
Design and specifications are subject to change without notice.
Recording Mode Manual, schedule,Motion detection,Alarm
System
Main Processor Hisilicon Hi3520A
System Resource Sixfold operation: Live recording, Playback, Backup, Remote access,
PTZ control, Mobile monitoring
Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network
Audio
Input 4×RCA
Output 1×RCA
Display
Display Split 1/4
BNCx1, VGA+HDMI:
Tour Display Support
Resolution
1024*768
1280*1024
1280*720@60P
Recording
OSD Camera title, Time, Video loss, Motion detection, Recording
Video/Audio H.264/ADPCM
Image Resolution D1(720*576/720*480), HD1(720*288/720*240), CIF(352*288/352*240)
Encoding stream
D1：100fps@PAL、120fps@NTSC
CIF:20FPS
Recording Priority Manual>Alarm>Motion detection
Video detection
& Alarm
Trigger events Recording, PTZ movement, Alarm, E-mail
Motion detection Zones:396（22*18）,Sensitivity:1-5（Level 5 is the highest）
Video loss Support
Alarm
Playback &
Backup
Playback channel 4CH (4CH at the same time)
Playback speed D1: NTSC 120FPS;PAL 100FPS
Search mode Time/date, Alarm, Motion detection
Playback function Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording
files can be viewed by dragging the progress bar back and forth
Backup mode U-disk /USB-HDD/USB-CD /DVD-RW/Network
Network
Physical interface RJ-45port(10/100M)
Network function TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP,
DDNS,DNS Binding
Remote operation Monitor, PTZ control, Playback, System setting, files download, Log
information
Mobile Phone Support Window Mobile, Symbian, Android, iPhone, Blackberry etc.
Hard Disk
Hard disk 1 SATA port, the capacity of single hard disk MAX 3T
Space occupation Audio: 14.4MB/H, Video: 56-900MB/H
HDD management Hard disk hibernation technology, HDD faulty alarm, file restoration
Weight 3.0kg(no HDD);Package Weight:3.5Kg
Auxiliary
Interface
USB Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk
RS485 PTZ control
Performance 4D1 real time
4 IN / 1 OUT
Environment
Power supply 12V/3A
Working environment -10℃~+55℃/10~90%RH/86~106Kpa
Dimension 335*250*50mm(Product size)

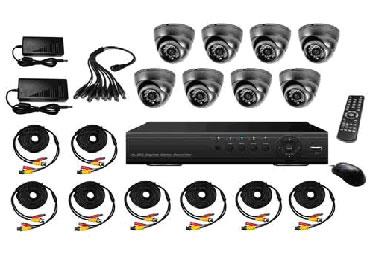

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΛΑΜΒΑΝΕΙ
 Καταγραφικό 8 καμερών Η.264 δικτυακό
 8 έγχρωμες κάμερες SONY με νυχτερινή λήψη 1/3.7 inch CMOS Sensor 520TVL (μαύρο - λευκό)
 Αντάπτορες για την σύνδεση και καλώδια καμερών
 Τροφοδοτικά καταγραφικού και καμερών
 Σκληρός δίσκος SATA HDD 500GB
 1 ποντίκι USB
 1 τηλεκοντρόλ


Πακέτο
KIT 8 DOME

■ Χαρακτηριστικά
Specifications
Model Name
Main stream
Extra
1920*1080@60P
EN-5008
Video 4D1+4CIF real time,NTSC: 240FPS ;PAL: 200FPS
Input 8×BNC,(1.0Vp-p,75Ω)
Standard
Output 1×BNC,(1.0Vp-p,75Ω),1×VGA,1×HDMI
Design and specifications are subject to change without notice.
Recording Mode Manual, schedule,Motion detection,Alarm
System
Main Processor Hisilicon Hi3520A
System Resource Sixfold operation: Live recording, Playback, Backup, Remote access,
PTZ control, Mobile monitoring
Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network
Audio
Input 4×RCA
Output 1×RCA
Display
Display Split 1/4/8/9
BNCx1, VGA+HDMI:
Tour Display Support
Resolution
1024*768
1280*1024
1280*720@60P
Recording
OSD Camera title, Time, Video loss, Motion detection, Recording
Video/Audio H.264/ADPCM
Image Resolution D1(720*576/720*480), HD1(720*288/720*240), CIF(352*288/352*240)
Encoding stream
D1：200fps@PAL、240fps@NTSC
CIF:20FPS
Recording Priority Manual>Alarm>Motion detection
Video detection
& Alarm
Trigger events Recording, PTZ movement, Alarm, E-mail
Motion detection Zones:396（22*18）,Sensitivity:1-5（Level 5 is the highest）
Video loss Support
Alarm
Playback &
Backup
Playback channel 8CH (8CH at the same time)
Playback speed D1: NTSC 120FPS;PAL 100FPS
Search mode Time/date, Alarm, Motion detection
Playback function Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording
files can be viewed by dragging the progress bar back and forth
Backup mode U-disk /USB-HDD/USB-CD /DVD-RW/Network
Network
Physical interface RJ-45port(10/100M)
Network function TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP,
DDNS,DNS Binding
Remote operation Monitor, PTZ control, Playback, System setting, files download, Log
information
Mobile Phone Support Window Mobile, Symbian, Android, iPhone, Blackberry etc.
Hard Disk
Hard disk 1 SATA port, the capacity of single hard disk MAX 3T
Space occupation Audio: 14.4MB/H, Video: 56-900MB/H
HDD management Hard disk hibernation technology, HDD faulty alarm, file restoration
Weight 3.0kg(no HDD);Package Weight:3.5Kg
Auxiliary
Interface
USB Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk
RS485 PTZ control
Performance 4D1+4CIF
4 IN / 1 OUT
Environment
Power supply 12V/3A
Working environment -10℃~+55℃/10~90%RH/86~106Kpa
Dimension 335*250*50mm(Product size)
